Ready to use platform for Rapid Control Prototyping of custom
algorithms in real hardware and real time

With a perfect combination of predefined topologies and compensators and a custom design with a powerful equation editor that lets you create your own transfer functions for all power converter elements:  plant, sensor and compensator.

SmartRCP image

Why Choose SmartRCP?

A wide range of applications.  36 Isolated and Differential PWM channels.

Code

PWM modulation features

 Fully controlled PWM modulation features, as defined in C or VHDL.

Future Engineering

Consulting Services

Engineering. Consulting. Experience in Power Electronics at your service.

Electrical Circuit

Export into Control Unit

   The code validated by RCP can be exported directly into the real Control Unit.

Archive

Documentation

   In-depth documentation and application examples provided.

Electronic Components Layout

Embedded & Post Processing Tools

   Embedded oscilloscope & datalogger and advanced post-processing tools.

Train station

Distributed Control

   Suitable for distributed control techniques.

Highlight:
Real-Time Simulation (RTS)

The Real Time Simulation (RTS) technology can run detailed power-electronics models in dedicated acceleration hardware, including simulations with very small time steps and long simulation periods that can be impractical for conventional offline simulation.

Motor Drive Applications (see datasheet)
The RTS environment can include inverter and motor models, parasitics, thermal effects, EMC behavior, component malfunction and short-circuit conditions

EMI Emulation, Vienna Rectifier (see datasheet)
For three-phase Vienna rectifiers, the RTS solution can also analyze common- and differential-mode currents, EMI filter interaction and control-loop stability in real time.

SmartRCP

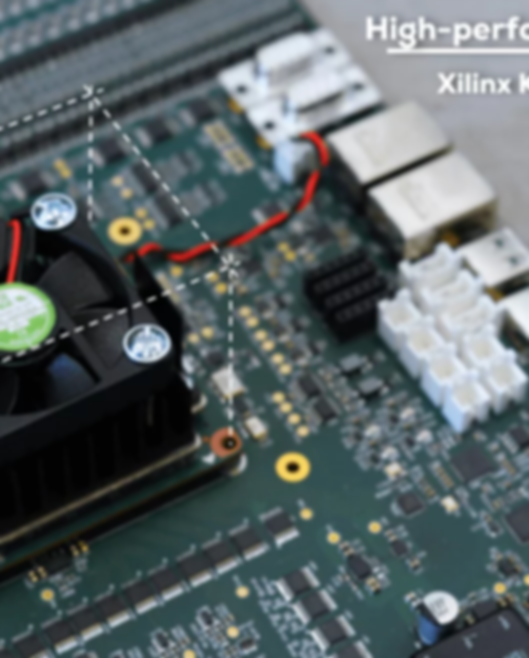

Computing Core


The SmartRCP computing core is based on an AMD Kria K26 SOM. This platform allows the integration of a custom AMD Zynq UltraScale MPSoC build together with an embedded processing system. Thus, a robust and efficient compromise between microprocessor-based and FPGA programming is achieved, enabling the development of any power electronics control architecture with almost no limits.

SmartRCP Interface

SmartRCP Interface is a powerful monitoring software tool that also allows you to control and configure all aspects of the system implemented on the SmartRCP platform. Its approach aims to allow you to maintain full control over the application in the simplest and most straightforward way possible.

PL-Datalogger

SmartRCP Interface includes the PL-Datalogger application for the acquisition and display of measurement signals or control variables.

  • Acquisition period of 100ns.

  • Long period acquisition mode or oscilloscope mode (with a 100ms refresh rate).

  • 6 simultaneous data channels.

  • Signal trigger with configurable level.

  • Data export in image or txt format.

SmartRCP device, including user manual with software and hardware descriptions.

Hardware Drivers for all board peripherals fully compiled as an IP core, ready to use.

All Vivado and Vitis configuration

Embedded Waveform Viewer

Synchronous Buck Converter template and Demo Board for example application.

More details and hardware
specifications in the
SmartRCP brochure

SmartRCP-connectivity-focused-on-power-e

Who is behind SmartRCP?

The SmartRCP hardware is developed by our partners, Power Smart Control.

Power Smart Control is an engineering company focused on innovative solutions in Power Electronics.  They provide design and simulation software for power electronics, customized hardware products, consulting and training.
